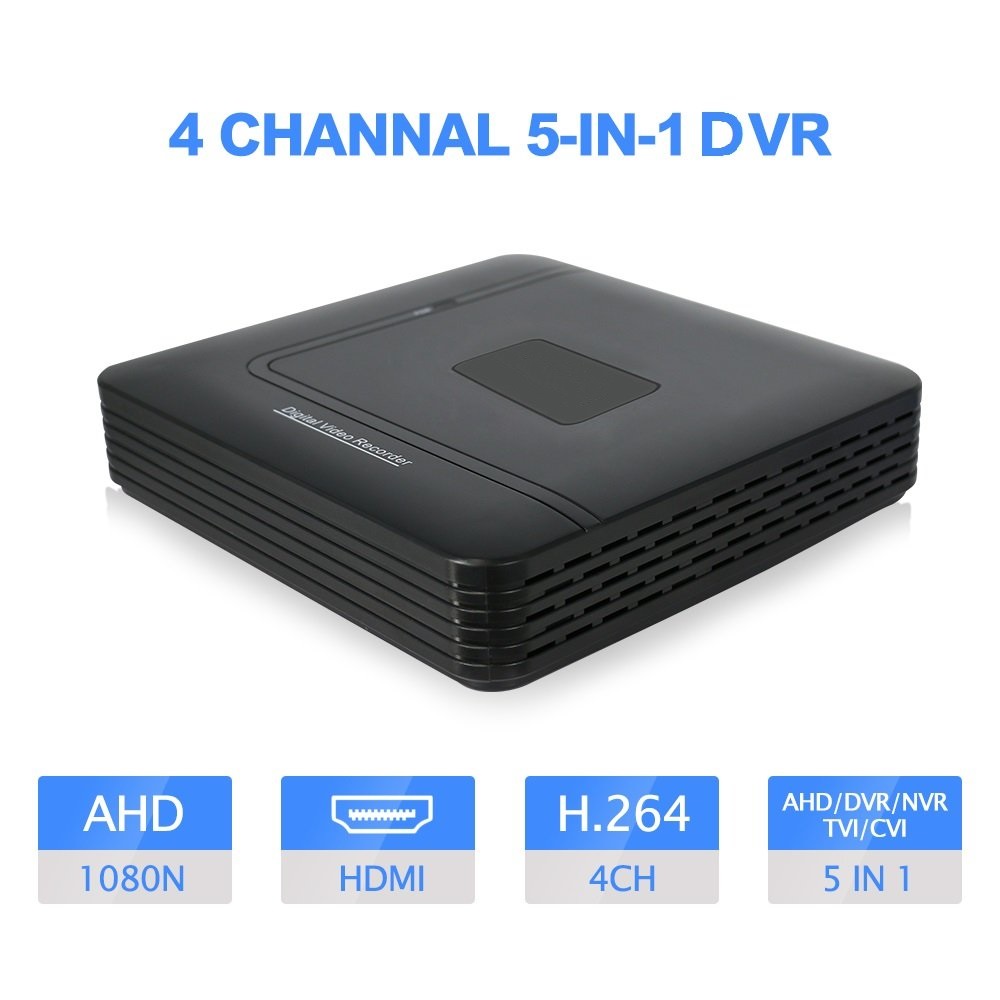

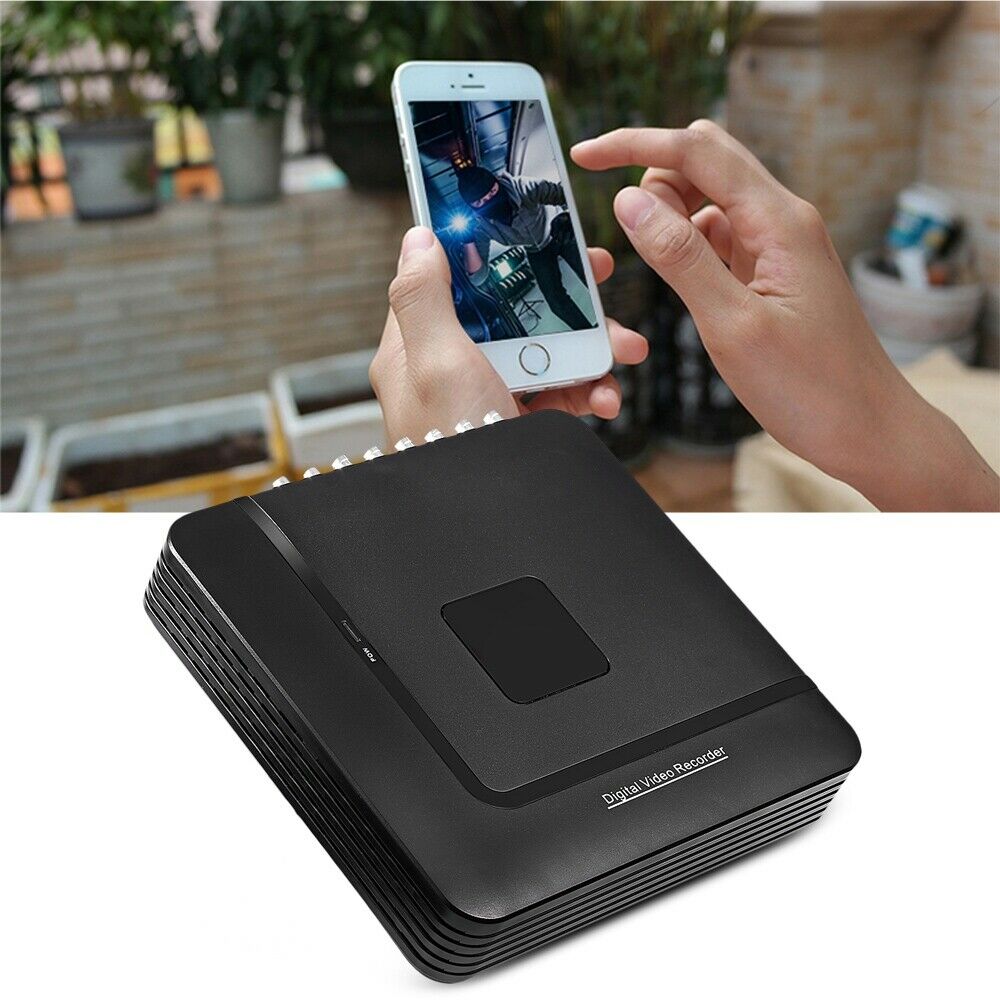

1080P 4CH H264 Hybrid DVR AHD CVI TVI NVR 5-in-1 for CCTV Camera Security System

Short Description:


Product Detail

FAQ

Product Tags

Overview
Quick Details
Place of Origin:
China
Model Number:
AP-A1004NS-C
Video Compression Format:
H.265, H.264
style:
mini DVR
Audio input:
Default 4 channel, BNC
Interface:
VGA
Ethernet:
RJ-45 port (10/100M/1000M)
Internal HDD:
1 SATA port, up to 6TB
RS485:
1 port, For PTZ control
Power Supply:
DC12V/2A
DC12V/2A:
-10 ~+55°C / 10~90%RH / 86~106kpa
Application:
XMEYE
Warranty:
2 Years

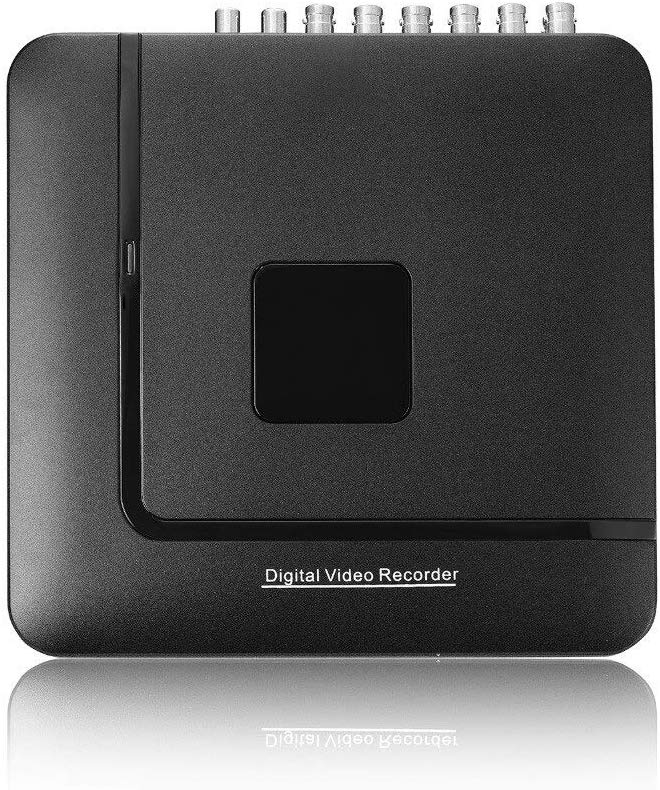

1080P 4CH H264 Hybrid DVR CCTV Camera Security System



Product Description

Features

  • Backup mode: network backup / USB portable HDD / USB imprint / SATA imprint. HDD port: 1 SATA port (maximum 8TB each) (Must be 3.5CH HDD). Power: 12V/2A (If you use more than 2TB hard drive, please replace 12V4A or more by yourself)
  • Motion detection: 192 (16 * 12) detection area per channel; multi-level flexibility can be set (only for local analog channels). 16bit true color GUI interface, and it supports mouse operation for easy and visual operation. Display: 1/4/8 screen (take analog channel as an example, others based on selected channel mode)
  • Display quality monitor: D1; VGA, cctv: High definition (supports 1920 * 1080 / 1280 * 720/1440 * 900/1280 * 1024 / 1024 * 768 / 800 * 600). Easy to install and use.
  • 8 channel video recorder – Real-time synchronous recording of channels, multi-channel real-time playback and multi-channel multi-user network operation. USB backup for video playback and evidence storage.
  • Note: Please note that this recorder does NOT support all the monitors. If the DVR can be turned on, but your monitor cannot display images, first know to replace the VGA or cctv cable, then change a new monitor to check again. Don’t work with some old monitors and some TVs. If your hard drive is not 3.5CH, please don’t use it with our recorder. About the hard drive: A secure DVR must be used with a secure hard drive, and most will not work properly if you use a PC hard drive.






Specifications









Model

AP-A1004NS-C

System

Main processor

Hi3520D V300

Video

video codec

H.264



Encode

4*1080N@12fps



Decode

4*1080N@12fps



Multi-mode

input

4CH 5 IN 1 DVR 4 *1080N:25fps/ch SUPPORT AHD,TVI, CVI / CVBS, IP CAMERA(ONVIF), Support 1 SATA(Each maximum support 6T )Support VGA, cctv 1080P full HD output    Support various mobile monitoring:(IOS,  Android)  HI3520D V200

Agreement

ONVIF

support

Audio

Audio compression

G.711A



Intercom

support

Recording and Playback

Record mode

Manual>alarm>motion detection>timing



Playback Channels

8(pure local input mode)

Storage and backup

Backup mode

Network backup,USB HDD, USB writer,SATA writer

Interface

Video input

8 BNC



Video output

1ch VGA,1ch cctv



Audio input

4ch RCA



Audio output

1ch RCA



Alarm input

No



Alarm output

No



Network interface

RJ45 10M/100M Adaptive Ethernet port



PTZ control

RS485; support multiple PTZ protocols



USB

2 USB ports



Hard disk

SATA(Each maximum support 6T )



Wireless

WIFI(expand via USB)

Other

Power

12V/2A



dimension

255mm(length)* 236mm(width)* 44mm(height)

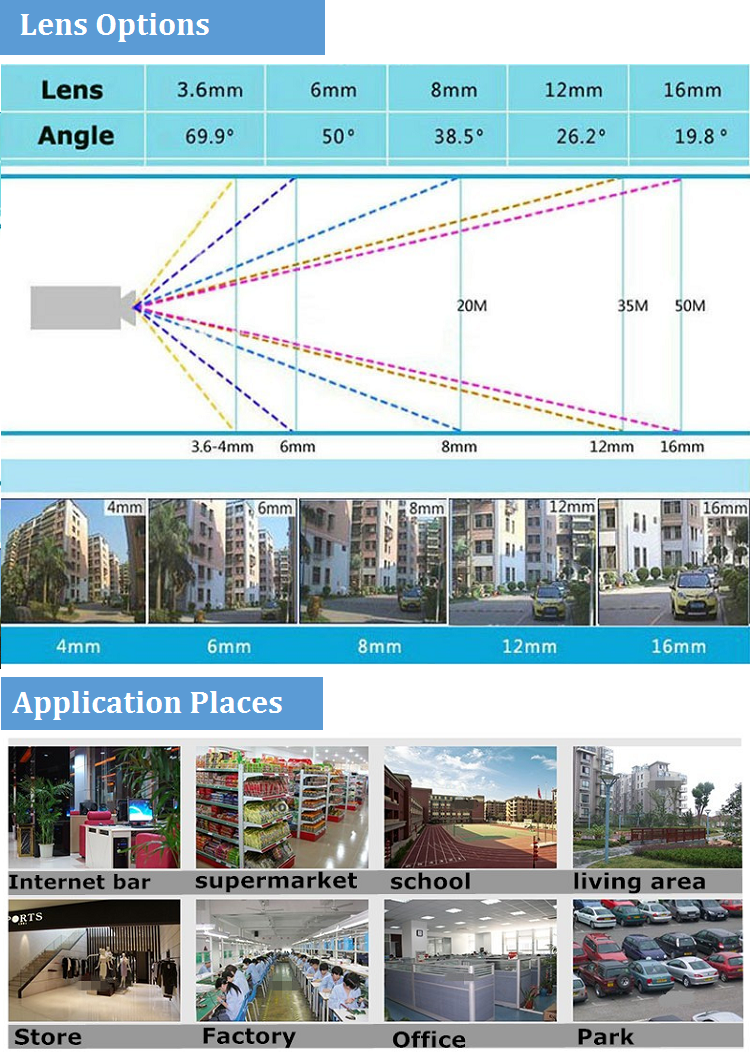

Len option
