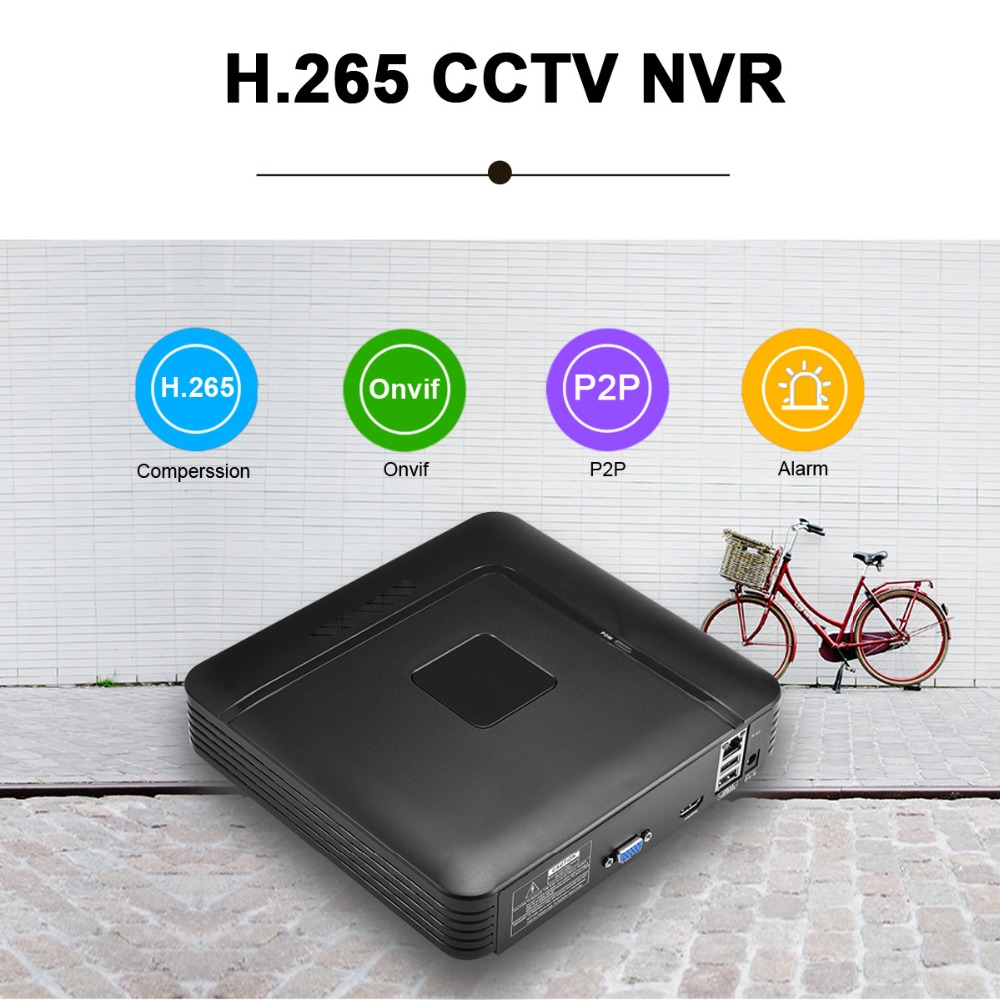

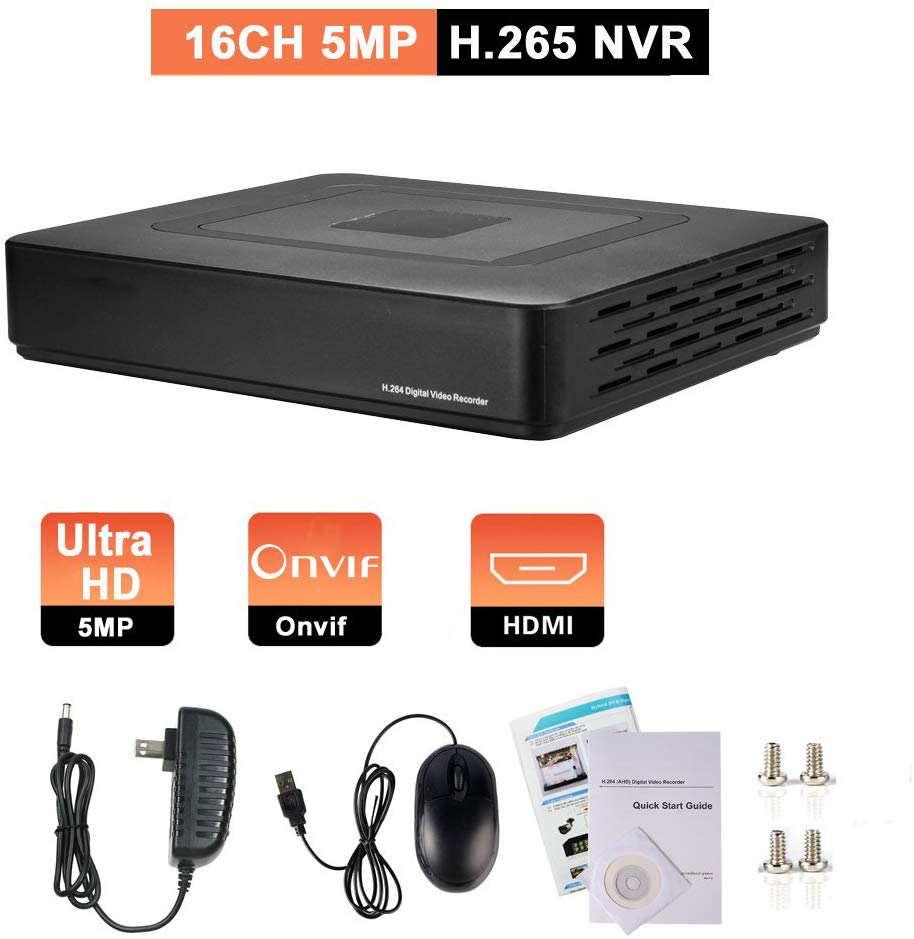

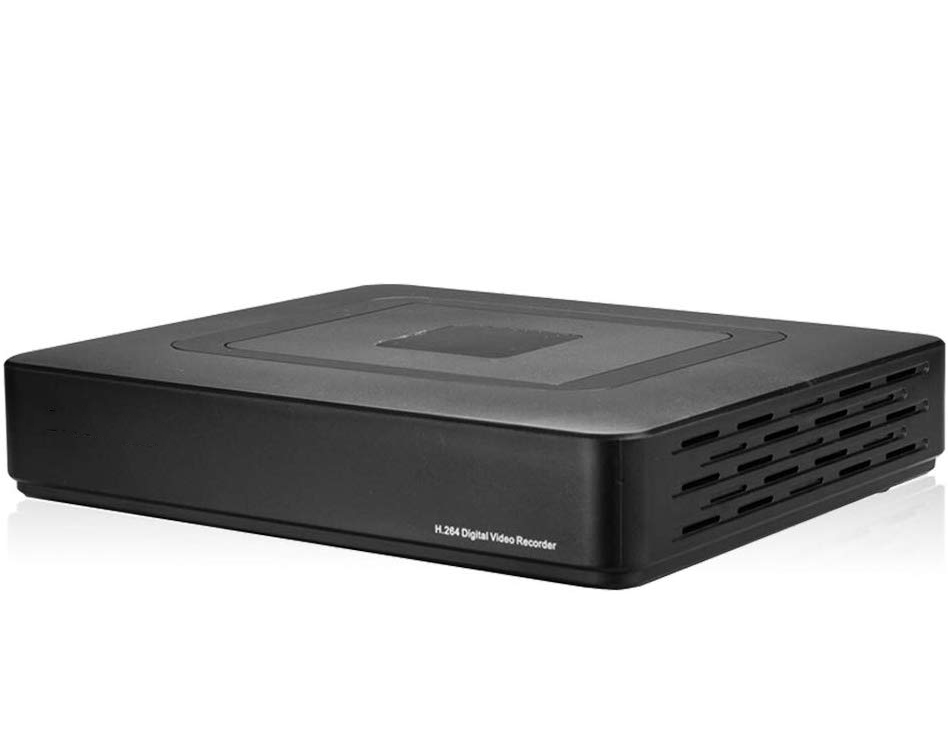

16ch 5MP H.264 P2P NVR CCTV Network Video Recorder

Short Description:


Product Detail

FAQ

Product Tags

Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Sunivision/HSX/ OEM
Model Number:
AP-DNVR8025T-UL
Warranty:
2 years, 2 Years
Certification:
ce
Special Features:
NIGHT VISION
Sensor:
CMOS
Style:
DVR
Function:
NIGHT VISION
Video Compression Format:
H.264
Data Storage Options:
DVR
Application:
Outdoor, Indoor
Customized support:
Customized logo, OEM, ODM
Type:
16ch 5MP P2P CCTV NVR
VIDEO IN:
32*1080P 25*5MP 8*8MP
VIDEO OUTPUT:
32*1080P 25*5MP 8*8MP
Compression:
H.264
SATA:
1*SATA
P2P:
support
APP:
XMeye App

16ch 5MP H.264 P2P NVR CCTV Network Video Recorder



Product Description

Features

  • 5MP NVR:This H.265 Network Video Recorder support 16 channel 5MP@15fps,8 Channel 5MP@30fps, 16 Channel 1080P@30fps IP Cameras;1CH 5MP playback or 2CH 1080P playback;
  •  H.264 High Efficiency Video Compression: Advanced H.264 compression technology lets you save on storage space which allows for longer recording times. H.265 technology compresses your video without sacrificing any of the HD video quality. H.264 can greatly improve compression efficiency and maximize storage space. It also takes up less bandwidth and enables smooth remote viewing.
  • Easy Remote view]: Plug & Play setup, Easy to configure, access and control. Scan QR Code on NVR from “Xmeye” app to instantly access live viewing and playback. Connects to and manages all the cameras on your network for ultimate ease and convenience in a home security system.
  • ]:Supports IP Cameras; Provides limited support for third party brand compliant IP Cameras. Intelligent search, playback, and backup functions provide enhanced ease of use and security






Specifications







Model

AP-NVR6008T-PL

System

Main processor

 HI3520A

Video

video codec

H.264

Encode

1080P/720P/D1

Decode

1080P/720P/D1

Multi-mode

input

32*1080P
25*5MP
8*8MP

Agreement



support

Recording and Playback

Record mode

Manual>Alarm>Video Detection>Continuous

Playback Channels

1/2/4channel playback simultaneously

Storage and backup

Backup mode

Network backup,USB HDD, USB writer,SATA writer

Interface

Video input

4BNC

Video output

1ch VGA,1ch cctv

Audio input

4ch RCA

Audio output

1ch RCA

Alarm input

No

Alarm output

No

Network interface

RJ45 10M/100M Adaptive Ethernet port

PTZ control

RS485; support multiple PTZ protocols

USB

2 USB ports

Hard disk

1 SATA(Each maximum support 6T )

Wireless

3G,WIFI(expand via USB)

Other

Power

12V/2A

dimension

255mm(length)* 236mm(width)* 44mm(height)



Company Information



Sunivision Technology Development Co., Ltd. is a leading and professional CCTV manufacturer located in Guangzhou, China. Sunivision was established in 2008, with 2000 square meter factory and 150 employees including 5 R&D engineers and 10 person for quality control, 15% of the year sales volume will be put into R&D, 2-5 New products will be come out every month.

Sunivision sepcialized in researching, producing and exporting CCTV Analog Cameras, AHD Cameras, Digital Cameras (IP Camera, CVI Camera, TVI Camera etc.) and Stnad-alone DVRs, CVI DVR, AHD DVR, NVR, providing the most stable digital security solutions.
