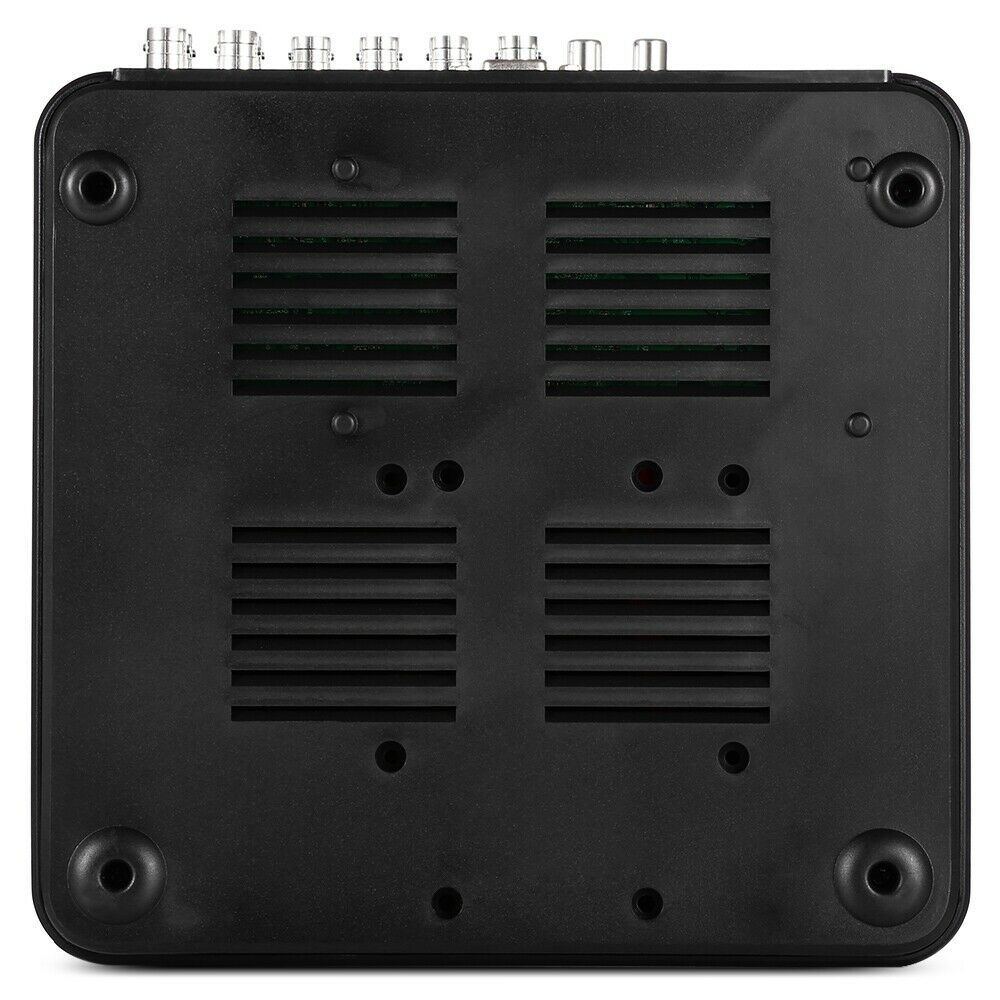

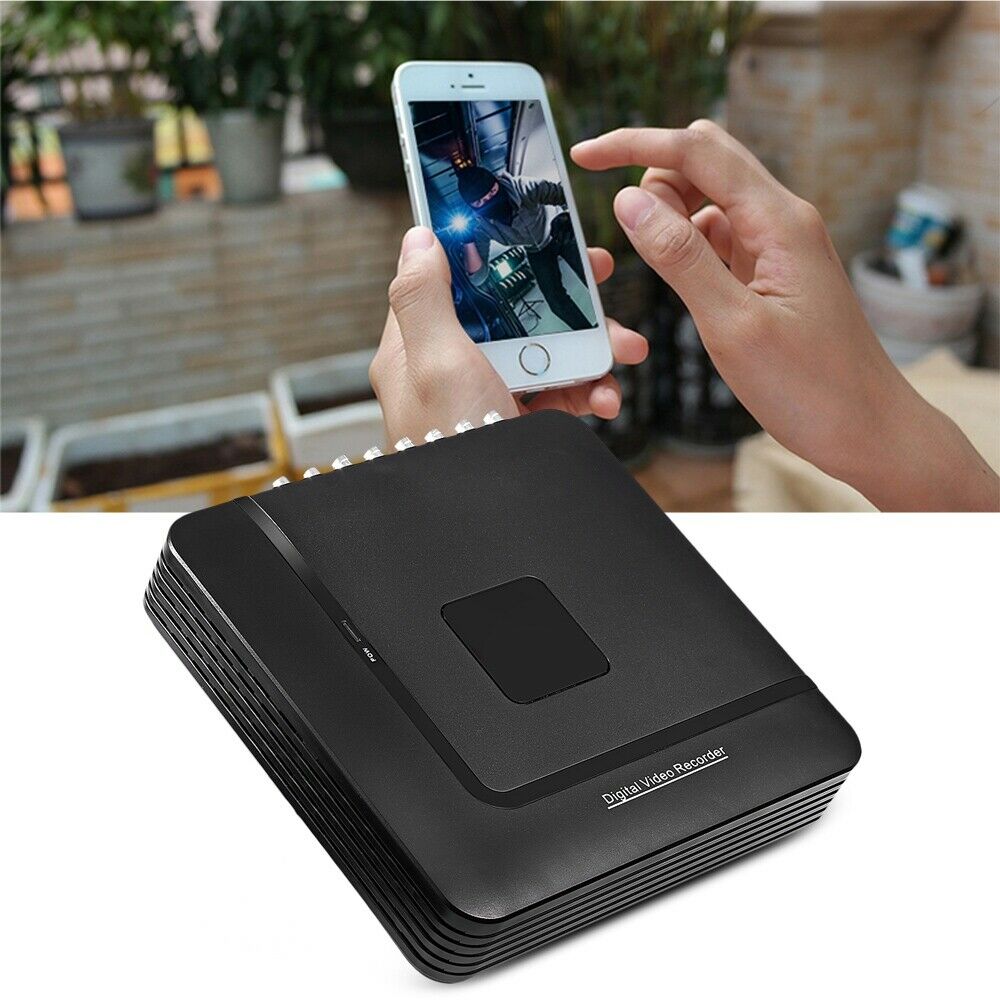

8CH 2MP TVI CVI AHD IP CVBS DVR HD 5 in 1 cctv security dvr with xmeye app

Short Description:


Product Detail

FAQ

Product Tags

Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
SUNIVISION
Model Number:
AP-A1008NHS-C
type:
dvr
Input:
Default 8 channel, BNC
Interface:
VGA
Ethernet:
RJ-45 port (10/100M/1000M)
Internal HDD:
1 SATA port, up to 6TB
USB Interface:
USB Interface
RS485:
1 port, For PTZ control
Power Supply:
DC12V/2A
DC12V/2A:
-10 ~+55°C / 10~90%RH / 86~106kpa
Video Compression Format:
H.264

8CH 2MP TVI CVI AHD IP CVBS DVR HD  5 in 1  cctv dvr with xmeye dvr firmware

Product Description










Specification:



Model

AP-A1008NHS-C

System

Main processor

Hi3520D V300

Video

video codec

H.264



Encode

8*1080N@12fps



Decode

8*1080N@12fps



Multi-mode

input

Only Analog:  8*1080N(AHD / TVI / CVI / CVBS)  Only IP:4*3.0M;8*1080P;

Agreement



support

Audio

Audio compression

G.711A



Intercom

support

Recording and Playback

Record mode

Manual>alarm>motion detection>timing



Playback Channels

8(pure local input mode)

Storage and backup

Backup mode

Network backup,USB HDD, USB writer,SATA writer

Interface

Video input

8 BNC



Video output

1ch VGA,1ch cctv



Audio input

4ch RCA



Audio output

1ch RCA



Alarm input

No



Alarm output

No



Network interface

RJ45 10M/100M Adaptive Ethernet port



PTZ control

RS485; support multiple PTZ protocols



USB

2 USB ports



Hard disk

1 SATA(Each maximum support 6T )



Wireless

3G,WIFI(expand via USB)

Other

Power

12V/2A



dimension

255mm(length)* 236mm(width)* 44mm(height)













Our Services

Payment Way:

T/T, Paypal, West Union, MoneyGram.

Delivery Time:
Goods in Stock needs 2-5 working days, not in stock and for bulk order needs 7-20 working days.

OEM Service:
We could offer OEM and ODM services for our clients.

Quality Warranty:
2 years hardware warranty, whole life technical service for continue cooperating customers.




Analog connection





Video comparison
