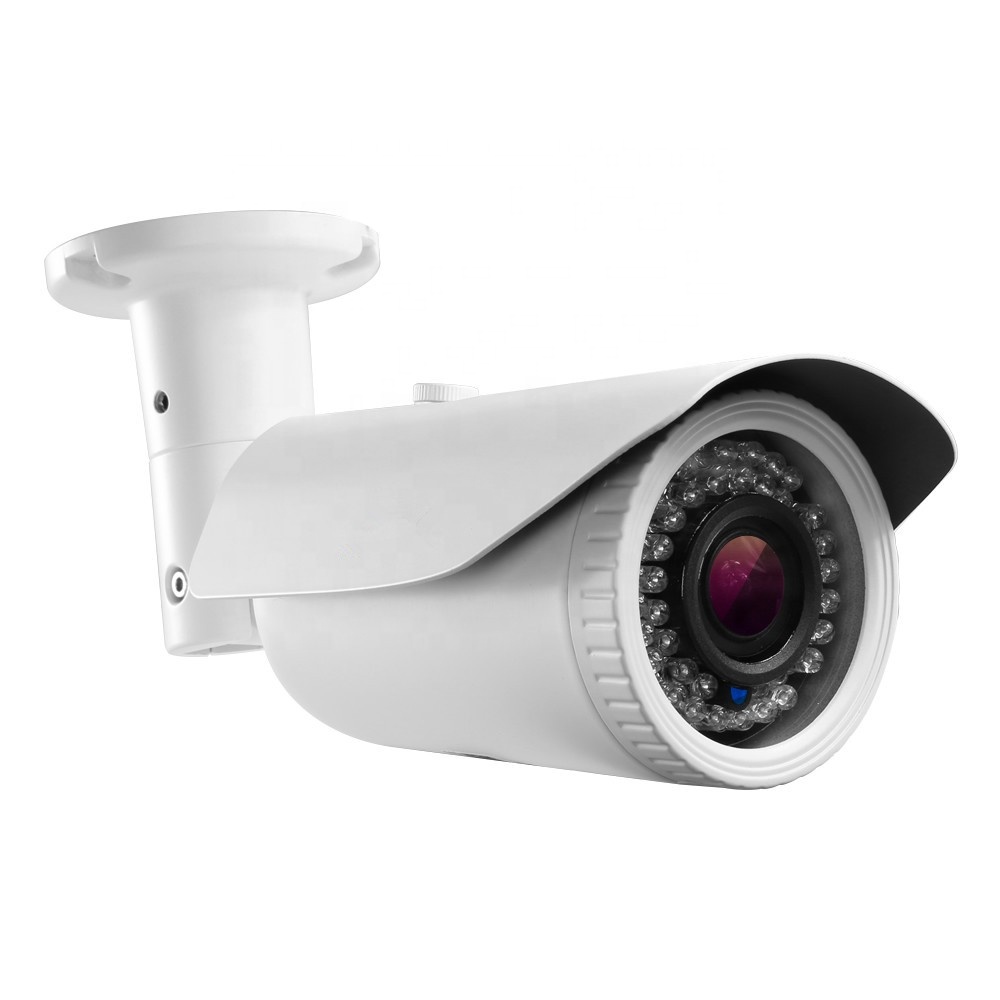

H.265 ONVIF Network IP Bullet 4MP PoE Weatherproof CCTV face detection ip camera with motorized zoom ip camera module

Short Description:


Product Detail

FAQ

Product Tags

Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Sunivision,OEM, HSX
Model Number:
AP-F065W-IPC40AFB
Sensor:
CMOS, MOTORIZED AF2.8-12MM
Special Features:
Waterproof / Weatherproof
Type:
face detection ip camera
Resolution:
4MP
Lens:
AF 2.8-12mm
Video compression:
H.265/H.264
Max resolution:
4MP
Infrared LED:
42LED
Video output:
Network
Working condition:
-10℃~60℃,humidity is less than 90%( non-condensing)
warranty:
2 year warranty

H.265 ONVIF Network IP Bullet 4MP PoE Weatherproof CCTV face detection ip camera with motorized zoom ip camera module

Product Description



Description:

The Detective has a motorized telephoto lens that allows you to optically zoom in to see a distant area more clearly. You can adjust the angle of view with our apps, over the web, or via your NVR. Just like with a point-and-shoot camera or a pair of binoculars, when narrow the field-of-view, you zoom in on an area and you can see more detail in that area. Although the Detective is a popular camera for homes that have a mid-range (35-100 foot) points of concern like gates, roads or driveways, this camera is even more frequently used is corporate environment such as long and narrow warehouse aisles.



This camera will plug and play with our NVRs or XVR. Please note that this camera model record in the new, more efficient H.265 compression codex and and can work with the onvif H.265 NVRs. You can switch the cameras compression to H.264 to work with any of those older onvif NVRs . We have not discontinued our old lines






Specification:

Model NO. AP-F065W-IPC40AFB
Network Camera
Image Sensor OV4689
Main processor HI3516D
Resolution 4MP
Effective Pixels 4MP
TV System PAL/NTSC
Electronic Shutter Time Auto: PAL 1/1-1/10000Sec; NTSC 1/1-1/10000Sec
Sync System Internal
Usable Illumination 0.01Lux
S/N Ratio ≥52dB
Scanning System Progressive
Video Output Network
Day/Night Color/ B&W (IR-CUT )
Compression  H.264
Image Config Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, BLC,
Motion Detection Support
Privacy  Masking 3 Rectangular Zone
WDR DWDR
Recording Mode NVR/NAS/CMS/Web
Language

Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi,

German, Russian, French, Korean,

Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian

Lens
Focus Length Auto Focus&Zoom  Lens 2.8-12mm
Focus Control AF
Lens Type AF
Pixels 3M Pixels
Night Vision
Infrared LED 42PCS IR LED
Infrared Distance 40M
IR Power On CDS Auto Control
Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4, HTTP, TCP/IP, FTP, NTP, RTSP, UDP, SMTP, DNS, DDNS
ONVIF Support ONVIF 2.0
P2P YES, Support QR Code
POE Optional, Support IEEE 802.3af
WIFI N/A
Video Delay  0.3S (Within the Lan)
Main Stream
Sub Stream
IE Brower  IE6-11
Smart Phone iPhone, iPad, Android, Android Pad
General
Housing Weatherproof , IP66
Anti-cut Bracket YES,
IR Cut Filter YES
Operation Temperature -10℃ ~ +50℃ RH95% Max
Storage Temperature -20℃ ~ +60℃ RH95% Max
Power Source DC12V±10%, 1000mA

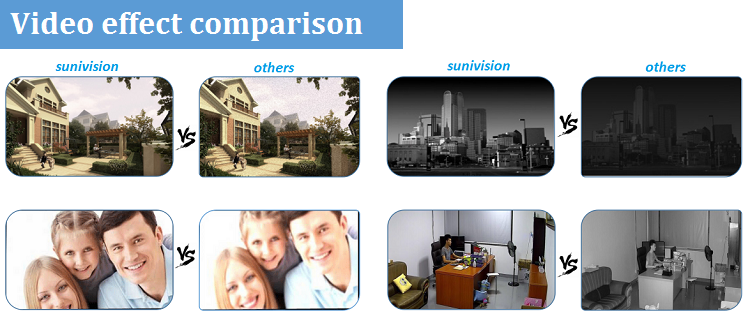

Video comparison
