SUNIVISION Factory!!! 1080P PoE Security Camera Surveillance CCTV System with 4 HD Superior Night Vision Cameras

Short Description:


Product Detail

FAQ

Product Tags

Overview
Quick Details
Warranty:
2 years, 2 Years
Sensor:
CMOS
Network:
wifi, Ip
Function:
Waterproof / Weatherproof, NIGHT VISION
Data Storage Options:
Full HD, NVR
Application:
Indoor, Outdoor
Customized support:
Customized logo, OEM, ODM
Place of Origin:
Guangdong, China
Brand Name:
sunivision
Model Number:
kit AP-F147-20JC
Video Compression Format:
H.264
Certification:
ce
Resolution:
1920 x 1080, 1920*1080
Special Features:
NIGHT VISION
Lens:
3.6mm
LED:
36PCS LED
IR Distance:
30m IR distance
NVR:
H.264 DVR with VGA
Camera type:
poe Ip Camera 1080p
Product name:
4 CH POE NVR
Certificate:
CE/FCC/ROHS
Keyword:
Ip Camera Poe

1080P PoE Security Camera Surveillance CCTV System

Product Description


Features

(1)poe cctv system: 8ch 1080p POE NVR & 4x 1080p waterproof IP66 bullet cameras, use indoor and outdoor

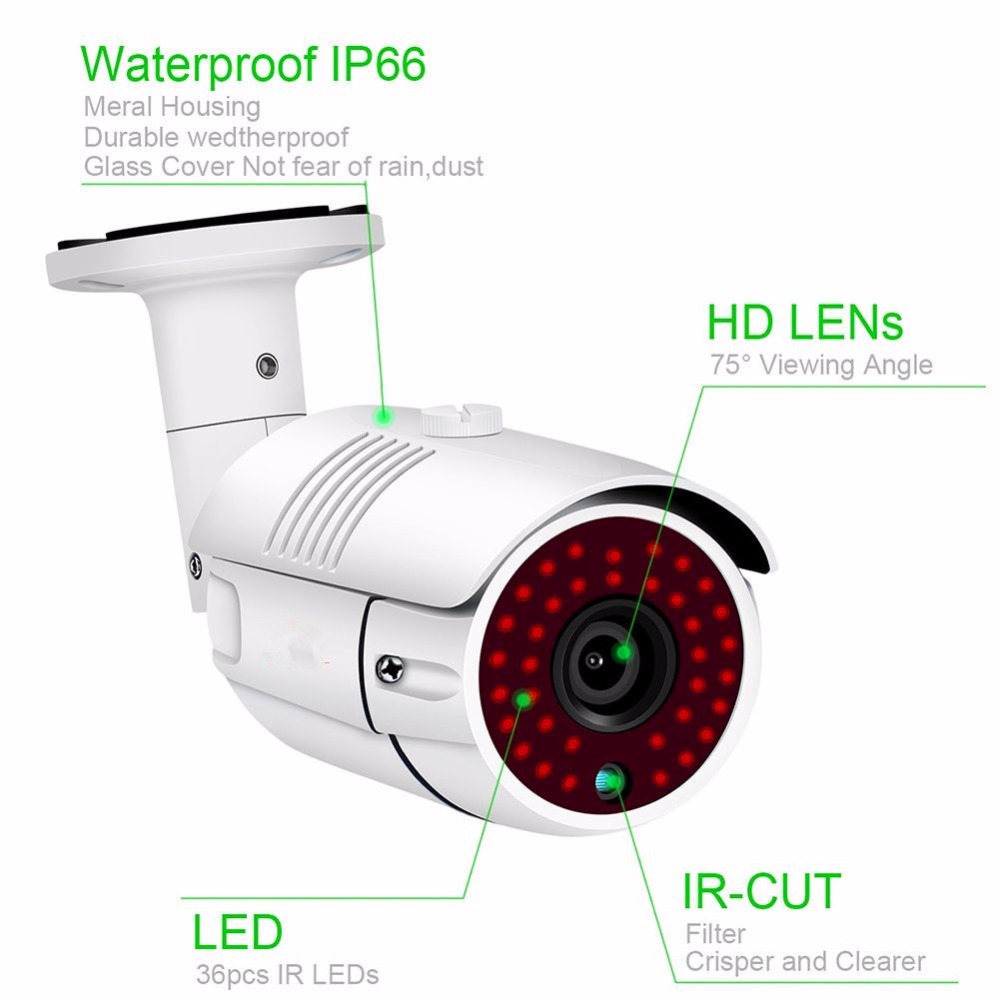

(2)Day and night full day monitoring with the poe cctv 1080p system : Each IP camera houses 36 premium IR LEDs inside of it and is capable of recording up 100ft / 30M super long Night Vision.True Color Day Display & B&W night monitoring with IR-Cut Filter. Keeping your eyes on your home and property 7/24. You will never miss any events.

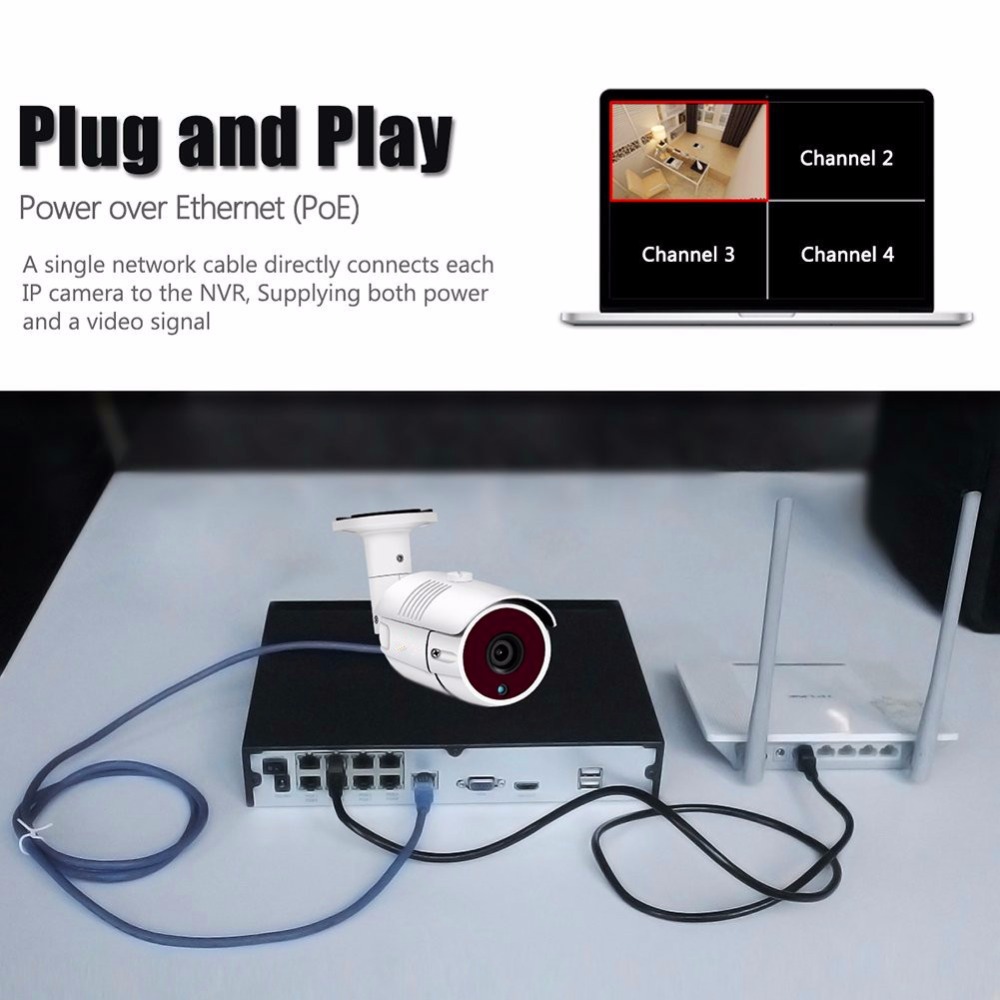

(3)Power over Ethernet : True PoE technology, a single network cable directly connects each IP camera to the NVR, supplying both power and video signal. Get you rid of power supply. And provide the better signal with the 2x15M and 2x 30M cat5 cable compared with wireless system.

(4)More Stable APP for Remote Access:The app Danale, available on iOS and Android, a new app we designed for the POE system, with more privary setting, and more fast viewing more than the other app, and the less offline. Only the first one who login the system will have a absolutly control right for the system. The others only be invited can view the system on their phone.

(5)Motion detection Exceptionally Timely alarm – timely alarm by e-mail whenever there is emergency. The poe cctv system come with 1TB hard drive, you can record video directly.



IP Security Camera Specification

Model NO. AP-F147-20JC
Network Camera
Image Sensor T20
Main processor F22
Resolution 2MP/1080P, 1920*1080
Effective Pixels 1920*1080
TV System PAL/NTSC
Electronic Shutter Time Auto: PAL 1/1-1/10000Sec; NTSC 1/1-1/10000Sec
Sync System Internal
Usable Illumination 0.01Lux
S/N Ratio ≥52dB
Scanning System Progressive
Video Output Network
Day/Night Color/ B&W (IR-CUT )
Compression  H.264
Image Config Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, BLC
Motion Detection Support
Privacy  Masking 3 Rectangular Zone
WDR DWDR
Recording Mode NVR/NAS/CMS/Web
Language

Chinese Simplified, Chinese Traditional, English,

 Bulgarian, Polish, Farsi, German, Russian,

French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian

Lens

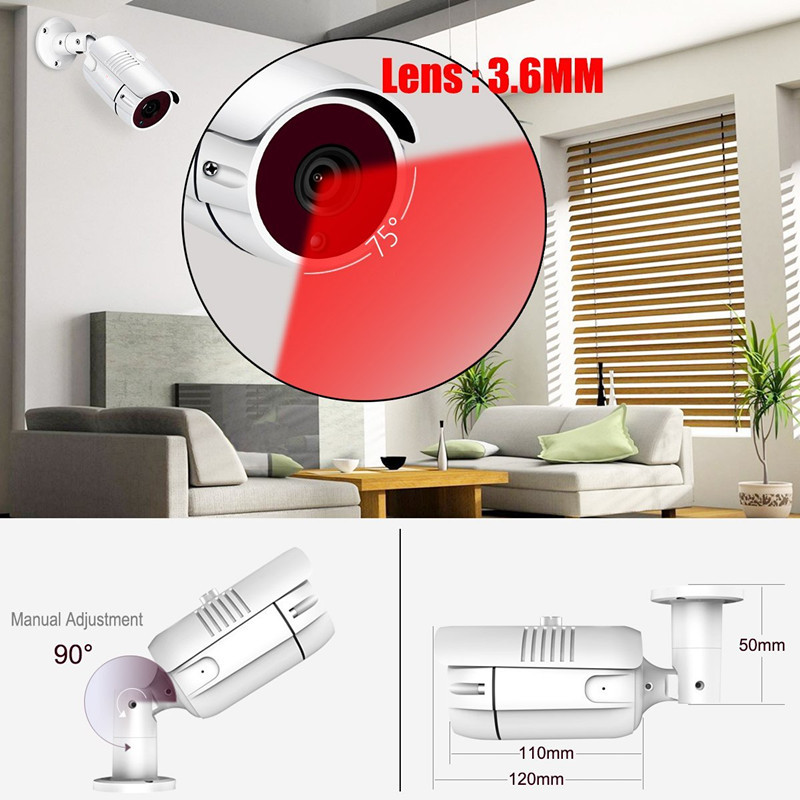

Focus Length 3.6mm fixed  lens (2.8/6/8mm optional)
Focus Control fixed
Lens Type fixed
Pixels 3.0m Pixels
Night Vision
Infrared LED 36PCS
Infrared Distance 30MIR
IR Power On CDS Auto Control
Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4, HTTP, TCP/IP, FTP, NTP, RTSP, UDP, SMTP, DNS, DDNS
Support  2.0
P2P YES, Support QR Code
POE Optional, Support IEEE 802.3af
WIFI N/A
Video Delay  0.3S (Within the Lan)
Main Stream 1920*1080
Sub Stream
IE Brower  IE6-11
Smart Phone iPhone, iPad, Android, Android Pad
General
Housing Weatherproof , IP66
Anti-cut Bracket YES,
IR Cut Filter YES
Operation Temperature -10℃ ~ +50℃ RH95% Max
Storage Temperature -20℃ ~ +60℃ RH95% Max
Power Source DC12V±10%, 1000mA
Dimension
Weight

What is included?
1 X 4CH POE NVR
4 X 1080P HD POE IP Camera
1 X 48V Power Supply for NVR
4X 15M Cat5 Ethernet cable
1 X 1m Ethernet Cable
1 X User Manual
2 year warranty and Lifetime Tech Support for Free




DVR Features

Real-time viewing of multi channels in one screen
Pentaplex function: live, recording, playback, backup & remote access;
Hard Disk 1 SATA port (Max support 8TB)
Smart video detection: motion detection, video blind, video loss
cctv/VGA synchronous video output
Interface: 2* USB 2.0
Network Interface: RJ45 x 1
Power over Ethernet Sockets: RJ45 X 8
H.264 dual-stream video compression for clear picture quality and maximizing storage utilization



4ch 4

(2)







4ch 4K

FAQ



1.Are you a trade company or a manufacturer?

A: We are a CE FCC RoHS approved manufacturer specialized in CCTV Camera, IP Camera, DVR, NVR and other CCTV Products.



2.What is your MOQ?

A: 1PC, OEM 100pcs



3.What is your delivery date?

A: The delivery date is about 5-7 working days after receipt of payment.



4.What is your payment terms?

A: T/T, Western Union and Paypal, 30% deposit in advance and 70% balance before shipment.



5.Can you send free samples?

A: Yes we provide Free Sample. (Pay ahead and refund back on first bulk order).



6. Do you accept OEM/ODM (Customer’s own logo) order?

 A:Yes, we accept OEM/ODM order.

 We can print customer’s logo on the products and offer customized design on packing boxes, sticker, etc



POE IPC connection



Video comparison
