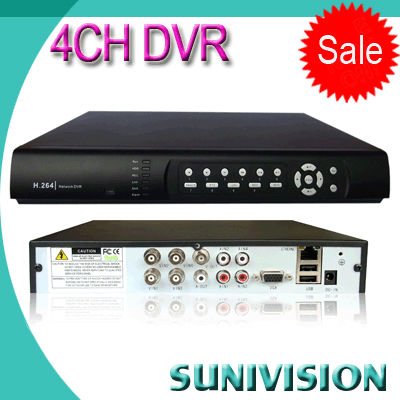

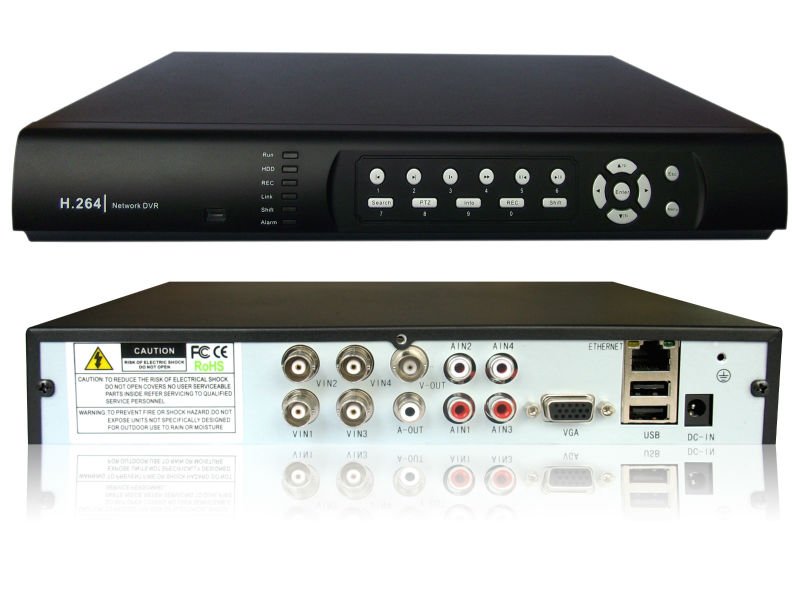

Support 4ch full D1 manual dvr 4ch h 264 DVR

Short Description:


Product Detail

FAQ

Product Tags

Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
sunivision
Model Number:
AP-9604HV
Video input(BNC)/output:
4/1
Audio input/output:
4/1
Playback synchronou sly MAX:
4CH
HDD qty:
1
Maximun of each HDD:
2T
Maximun of total HDD:
2T
CMS software:
yes
Flash memory backup:
yes
VGA:
1
PTZ Control:
YES,built-in RS-485 port

                   Support 4ch full D1

            manual dvr 4ch h 264 DVR

Features:

1.H.264 video compression

2.support  4CH playback simultaneously

3.support multiplex

4.support D1,HD1.CIF recording resolutions,4CH realtime D1 record

5.support PTZ control via built-in RS-485 port

6. Support 26 languages



Specifications:

Video Compression Format

H.264

Video System

NTSC / PAL

GUI OSD

YES

Video Input(BNC)

4CH BNC input(composite video signal 1Vp-p 75Ω BNC)

Video Output(BNC)

1CH BNC output

Audio Input/Output

4CH audio input,1CH audio output(RCA)

Maximum Recording Rate(CIF/HD1/D1)

CIF:352×240 pixels with 480 IPS  /352×288 pixels with 400 IPS

HD1:704×240 pixels with 224 IPS  /704×288 pixels with 192 IPS

D1:704×480 pixels with 112 IPS  /704×576 pixels with 96 IPS

Image Quality Setting

Supper Best,Well,Good,Medium,Normal and Bad

Hard Disk Storage

Support 1 SATA HDD,each max upto 2TB

Alarm Input/Output

No

Multiplex Operation

Live display/record/playback/backup/network transmit

Recording Mode

Manual/Timer/Motion

Playback Mode

Multiple slow and rapid play speeds,manual and single-frame play modes,and support of drag the sliding bar to set.



Backup Device

USB flash disk/Network backup

Pre-alarm Recording

Recording for 10 seconds before alarming

Network Protocol

TCP/IP,PPPOE ,DDNS and NTP

Ethernet remote view

Support remote surveillance up to 10 users simultaneously

CMS software

YES

Mobilephone View

YES

VGA Interface

YES

Log record function

YES

Image Tour

YES

IR Remote control

YES

Video Loss Detection

YES

Video Adjustable

Hue /Saturation /Contrast /Brightness adjust

PTZ Control

YES,built-in RS-485 port

USB Mouse

YES

Power Source

DC 12V

Key Lock(Password Protection)

YES

Power-down recovery function

YES


















After-Sale Services:

All our products have 2 year warranty,

And we sure the product will be free from maintenance within warranty period.



Faster delivery:

Within 5 days for sample after payment cleared.

Within 5-10 days for medium & large order after payment cleared.



Remark:

1, can design and print packing box according to your requirements.

2, can put your logo & model No. & series No. on the cameras and packing Box

….
