China top 10 factory china cctv shipset home security AHD cctv cameras prices 2mp with outdoor bullet cctv camera case Manufacture and Factory

top 10 factory china cctv shipset home security AHD cctv cameras prices 2mp with outdoor bullet cctv camera case

Short Description:

Send email to us

Product Detail

FAQ

Product Tags

Overview

Quick Details

Channels:: 1

Warranty:: 2 years

Network:: AHD camera

Function:: Waterproof / Weatherproof, NIGHT VISION

Application:: Indoor, Outdoor

Customized support:: Online technical support, Customized logo, OEM, ODM, Software reengineering

Place of Origin:: Guangdong, China

Brand Name:: Sunivision/ OEM/ HSX

Model Number:: AP-F117F21-c

Sensor:: CMOS

Special Features:: NIGHT VISION, Motion Detection, Waterproof / Weatherproof

Certification:: ce, RoHS

Data Storage Options:: DVR

Video Compression Format:: H.265

Technology:

Infrared

Image Device:

2MP

LED:

8 array LED

Lens:

3mp HD 3.6mm LEN

Image Resolution:

2mp, 1920*1080

Casing:

Metal casing

type:

Smart HDR WDR camera

Day/Night:

Auto(ICR) cctv camera

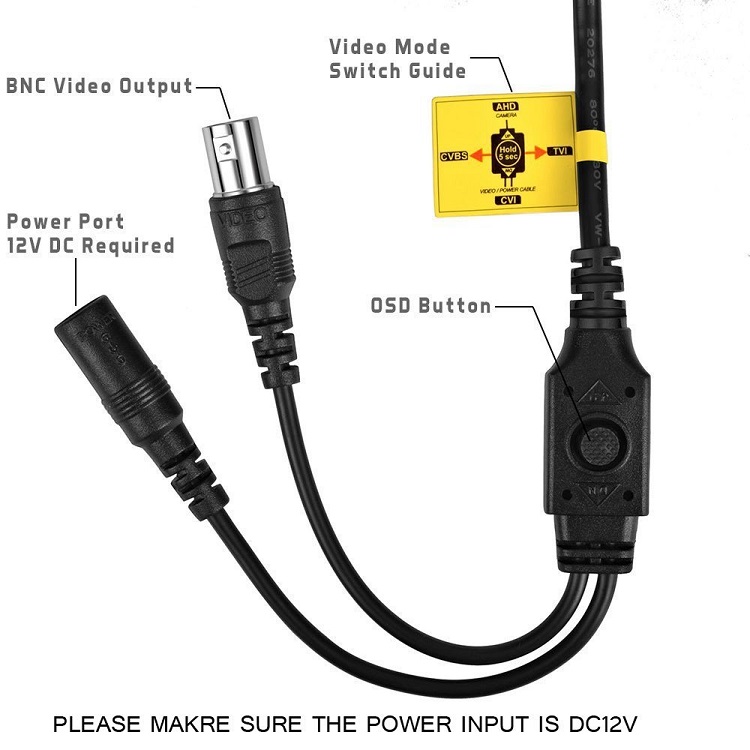

Video Output Mode:

AHD/TVI / CVI/ CVBS

top 10 factory china shipset home security AHD cctv cameras prices 2mp with outdoor bullet cctv camera case

HOT SALE

FEATURE:

*High resolution 4 in 1 AHD+CVI+TVI+CVBS hybred camera, HD 1920*1080(1080P),

*Shippset NVP2441+IMX 30 7Smart HDR +WDR
*The transmission distance over 500 meters with 75-3 coaxial cable
*Support IR-CUT dual filter switch, to achieve day and night monitoring, color is not partial and distortion

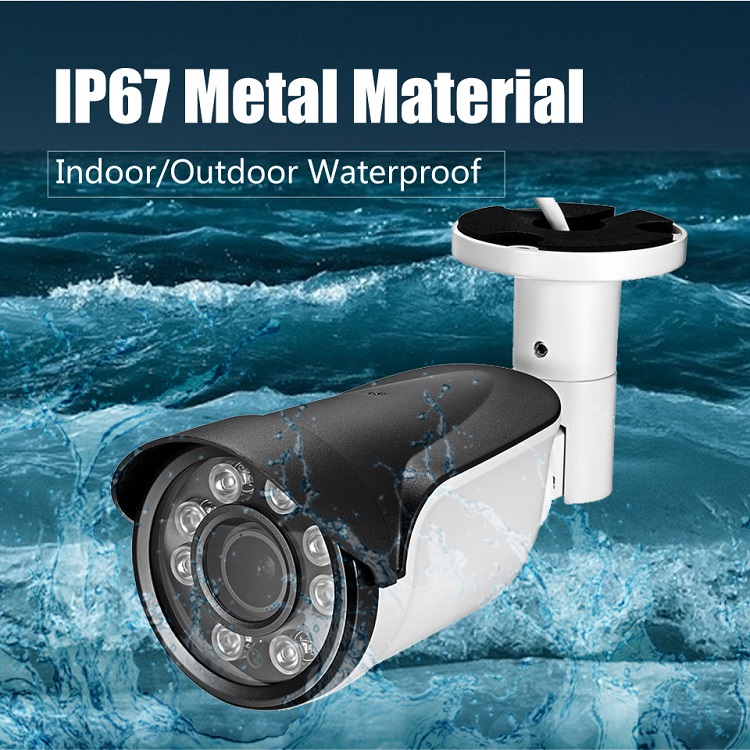

*Color waterproof camera, easy installation Type
* IR LEDs: 36 LED; 30m IR night vision distance;
* Standard lens: 3MP 3.6MM
* Color:White

Product Description

Model NO.	AP-F117F21
HD 4 in 1 Camera
Image Sensor	IMX 307
DSP	NVP2441
Image Resolution	PAL: 25fps@1080P; NTSC: 30fps@1080P
Effective Pixels	1920(H)×1080(V) , 2MP
TV System	PAL/NTSC
Electronic Shutter	AUTO/1/50(1/60)-1/50,000sec
Video Frame Rate	25/30fps@1080P
Sync System	Internal
Usable Illumination	0.01Lux
S/N Ratio	≥41dB
Scanning System	Progressive Scan
Video Output Mode	AHD/TVI/CVI 1080P &960H
Transmission Distance	Over 500m via 75-3 coaxial cable
Day/Night	Auto (ICR) / Color / B&W
White Balance	Auto/Auto ext/Pushing/Manual
AGC	AGC
BLC	Off/BLC
DNR(Digit Noise Reduction)	Off/Low/Middle/High
Motion Detection	NO
OSD Support	YES
Privacy Mask	NO
Defgo	NO
Shading	NO
Lens
Focus Length	2.8-12MM
Focus Control	Manual
Lens Type	varifocal
Pixels	3M Pixels
Auto Iris Support	NO
Night Vision
Infrared LED	4 ARRAY LEDs with Nightvision
Infrared Distance	50METER
IR Power On	CDS Auto Control
General
Vandalproof Housing	YES
Lens Angle Adjustment	YES,
Dual Voltage	NO
Heater	NO
Operation Temperature	-10℃ ~ +50℃ RH95% Max
Storage Temperature	-20℃ ~ +60℃ RH95% Max
Power Source	DC12V±10%, 300mA

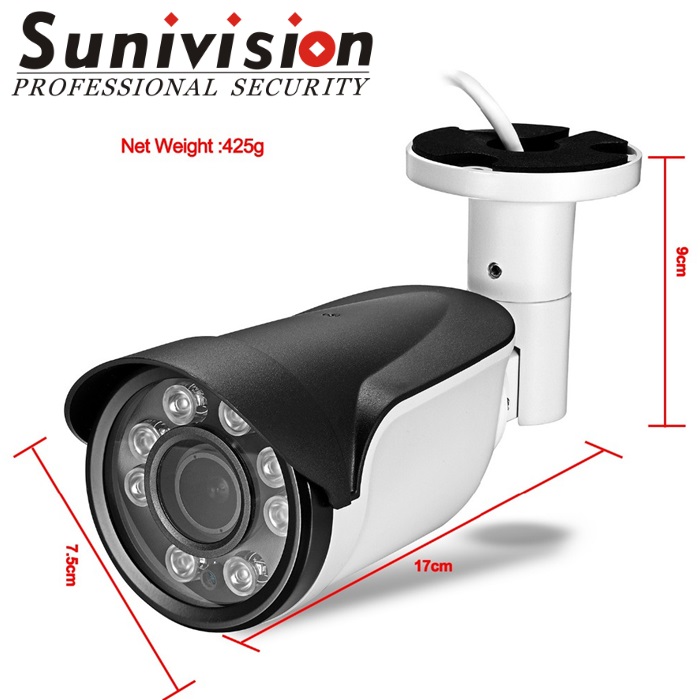

Dimension
Weight
