2MP Underground Cctv Camera H.265 Night VISION Motion Detection DVR Customized Logo Outdoor Online Technical Support Indoor
- Place of Origin:
-
Guangdong, China
- Brand Name:
-
Sunivision
- Model Number:
-
AP-F166SH22
- Warranty:
-
2 years, 2 Years
- Certification:
-
No
- Special Features:
-
NIGHT VISION, Motion Detection, Waterproof / Weatherproof
- Sensor:
-
CMOS
- Network:
-
analog
- Function:
-
Waterproof / Weatherproof, NIGHT VISION
- Video Compression Format:
-
H.265
- Data Storage Options:
-
DVR
- Application:
-
Indoor, Outdoor
- Customized support:
-
Online technical support, Customized logo, OEM, ODM, Software reengineering
- Technology:
-
Infrared
- Color:
-
White
- IR vision distance:
-
40m
- IR cut:
-
YES
- Resolution:
-
1080P
- Lens:
-
3.6mm
- Image Sensor:
-
1/3" Progressive Scan CMOS
- Keyword:
-
HD 4 IN 1 Camera
- Channels:
-
4

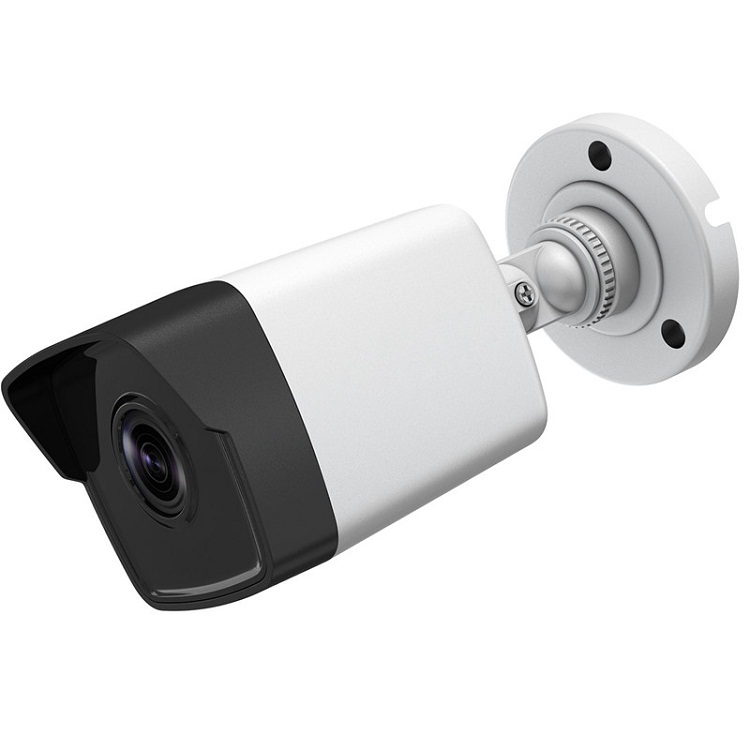

0 2MP underground cctv camera
Specifications
| Image Sensor | IMX323 |
| DSP | V30E |
| Image Resolution | PAL: 25fps@1080P(1920×1080); NTSC: 30fps@1080P(1920×1080) |
| Effective Pixels | 1920(H)×1080(V) , 2MP |
| TV System | PAL/NTSC |
| Electronic Shutter | 1/25s~1/50,000s , 1/30s~1/60,000s |
| Sync System | Internal |
| Usable Illumination | 0.01Lux |
| S/N Ratio | ≥41dB |
| Scanning System | Progressive Scan |
| Video Output Mode | AHD/CVBS (1080P/960H) (BNC) |
| Transmission Distance | Over 500m via 75-3 coaxial cable |
| Day/Night | Auto (ICR) / Color / B&W |
| OSD Menu Language | EN, CN, DE, FRA, IT, ES, |
| PL, RU, PT, NL, TR | |
| White Balance | Auto/Manual |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Picture Adjustment | Yes |
| OSD Support | Yes |
| Lens | |
| Focus Length |
3.6MMFixed lens, Option lens: 2.8mm, 6mm,12mm add USD1 1.8MM add USD2(HAVE BLACK CORNER) |
| Focus Control | FIXED |
| Lens Type | FIXED |
| Pixels | 3.0M Pixels |
| Auto Iris Support | NO |
| Night Vision | |
| Infrared LED | 36PCS IR LED |
| Infrared Distance | 30M |
| IR Status | Under 10 Lux by CDS |
| IR Power On | CDS Auto Control |
| General | |
| Weatherproof Housing | YES, IP66 |
| Anti-cut Bracket | YES |
| Dual Voltage | NO |
| IR Cut Filter | YES |
| Heater | NO |
| Operation Temperature | -10℃ ~ +50℃ RH95% Max |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max |
| Power Source | DC12V±10%, 400mA |
| Dimension | 550x440x240mm |
| Weight |
0.35kg
|
2 Megapixel Image Sensor
1080p HD Video Resolution (1920 x 1080)
960H Resolution in CVBS Mode
AHD, HD-TVI, HDCVI, and Analog CCTV (CVBS) modes
Switchable PAL and NTSC Video Standards
Zero Light Infrared Night Vision
24 Pieces Infrared LEDs / 50 foot IR Distance
3.6mm Fixed Lens / 90 Degree View
IP66 Weatherproof Housing – Indoor / Outdoor
White Dome
Eye-ball Dome Style Mount – Ceiling or Wall Mountable
OSD Controls via Cable / Joystick
DC12V 350mA
12V DC Power Supply Included
ODM/ OEM Services: Print Logo on goods and box
MOQ
1 pcs for sampe, buyer need pay it in advance, the amount will be deducted from next order.
50 pcs after sample order, support mixed batch.
Warranty
1. CCTV Camera: Two years, products with your own logo or without logo
2. DVR, NVR: Two year, products with your own logo or without logo
Payment Terms
1. Telegraphic Transfer (T/T)
2. Paypal: 4% commission charges will be added into the amount.
3. Western Union: Please offer us MTCN and the sender name after you make the payment.
4. Alibaba online payment.: Support alibaba Assurance order, you can pay online via Credit card.
Lead Time
Sample orders will be delivered from our factory within 2-5 days.
General orders will be delivered from our factory within 3 – 10 days.
